这个工程的模板安装做得真漂亮！

2017-09-07 10:13:01 2443 admin

一、后浇带支模

楼板后浇带处采用木模板锯齿口支模


后浇带处采毛毯覆盖，防止交叉污染

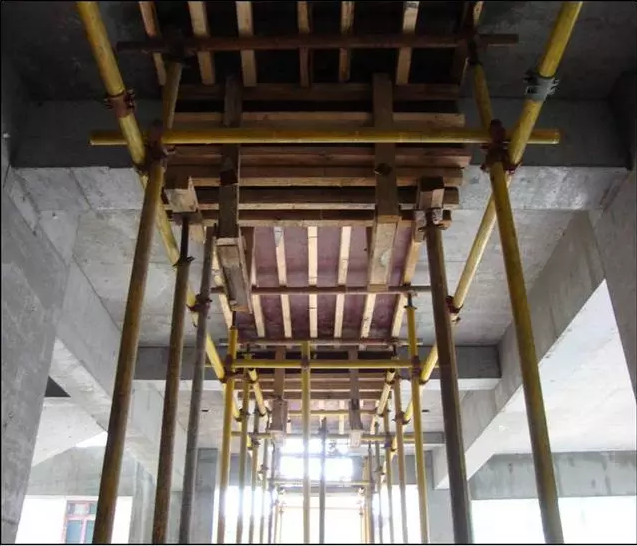

梁板后浇带采用独立的支撑体系，与主体架体一起搭设，主体模板拆除时后浇带部分架体不拆，模板就不受影响，从而保证后浇带两侧沉降一致，后浇带浇筑后无错台、下沉、漏浆现象；



二、楼板支模

双面腹膜镜面竹胶板应用


楼板支模样板



楼板支模槽钢与方木配合使用：采用5号槽钢代替方木，只在结构板的拼缝之处使用方木，确保模板的平整度和减少木材使用。



三、楼面高差控制(定型化做法)

1、采用型钢制作工具式吊模，每次使用前进行清理并刷脱模剂；


2、转角拼装处采用插销连接，焊定位卡控制水平标高及轴线位置；


3、浇筑砼，严格控制楼面标高；


4、拆模后外观；


四、飘窗板滴水线一次成型

飘窗板支模样板


飘窗板滴水线一次成型现场实景




五、框架柱支模

框架柱支模样板



框架柱木模板支模



框架柱木模板支模


框架柱大模板支模


塑钢模板支模


六、剪力墙支模

剪力墙木模板支模



七、木模板楼梯踏步定型化支模

定型化楼梯支模样板


定型化楼梯支模样板做法现场交底


木模板楼梯踏步定型化支模应用


定型化支模应用后混凝土效果


八、大模板施工创精品工程策划

全钢大模板支模



大模板施工样板



大模板施工主体外景



大模板施工主体外景
